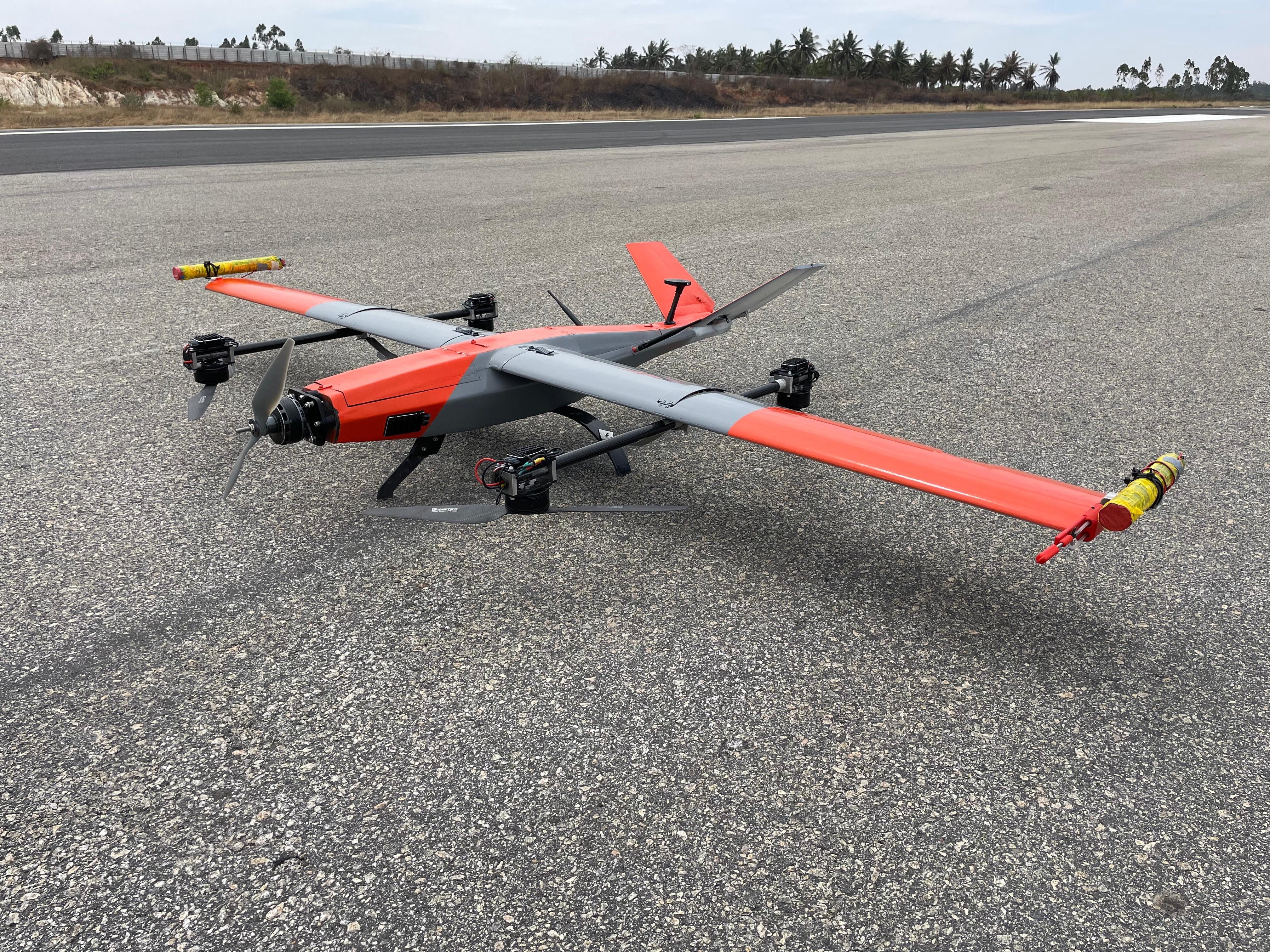

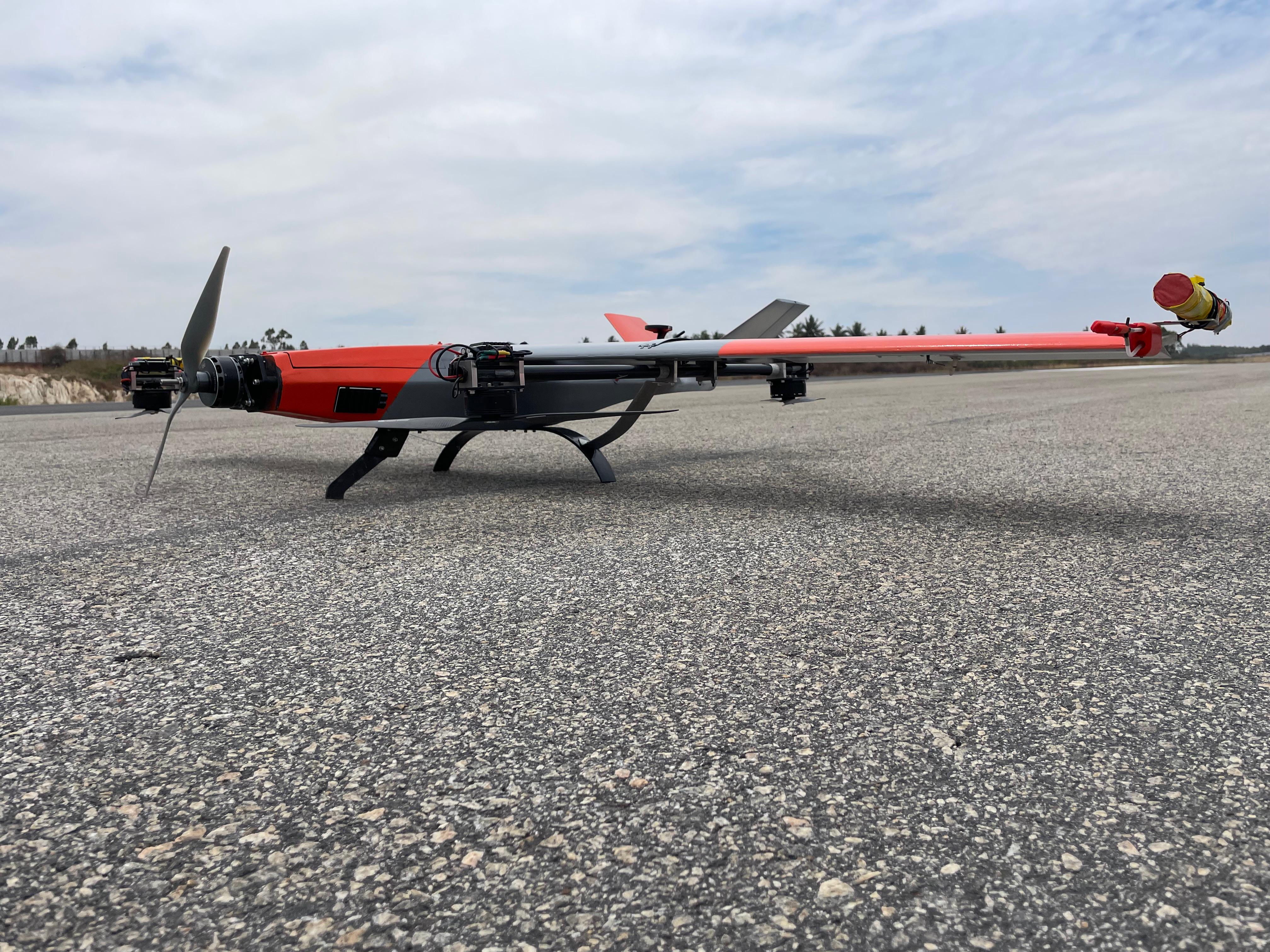

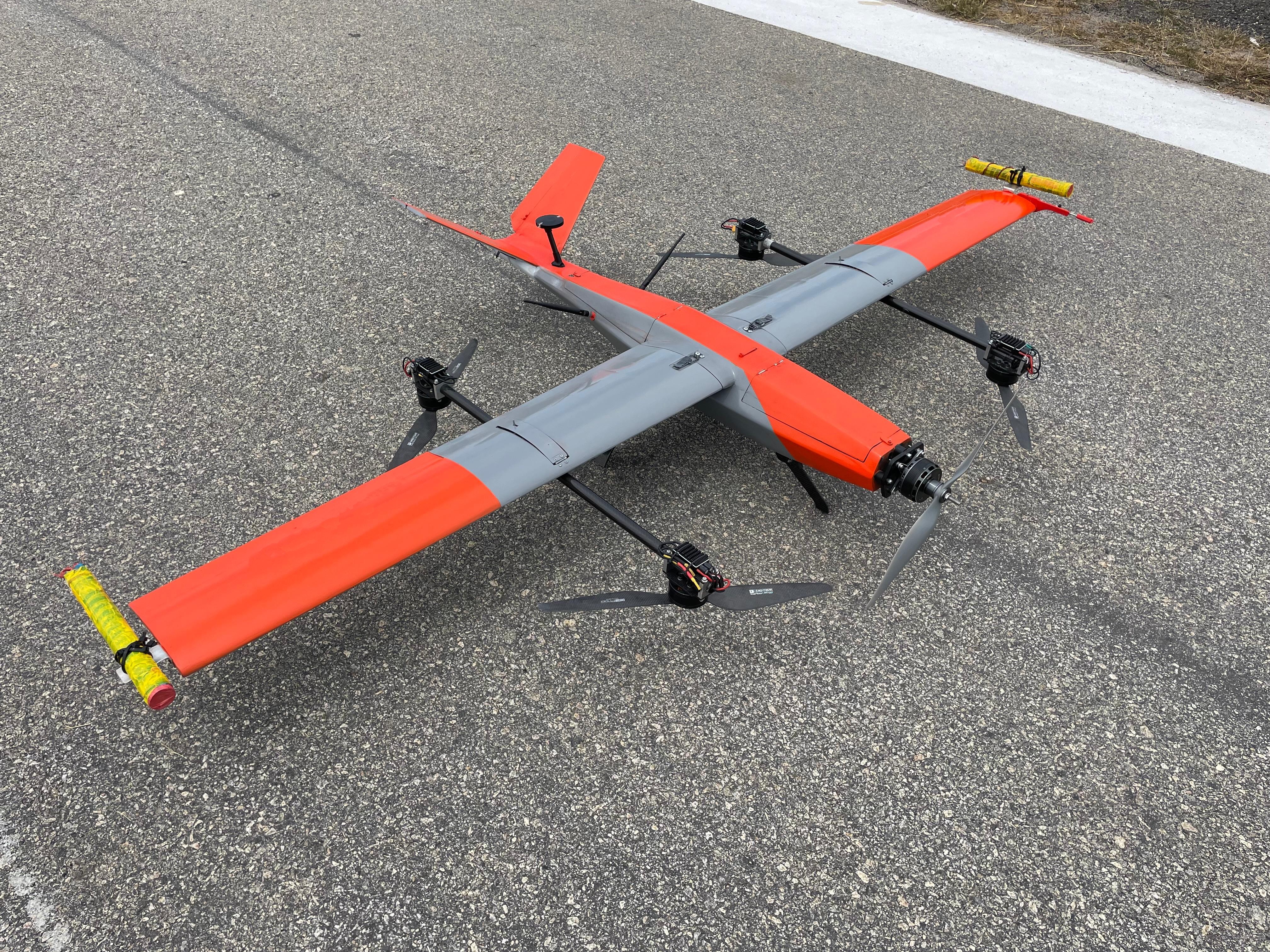

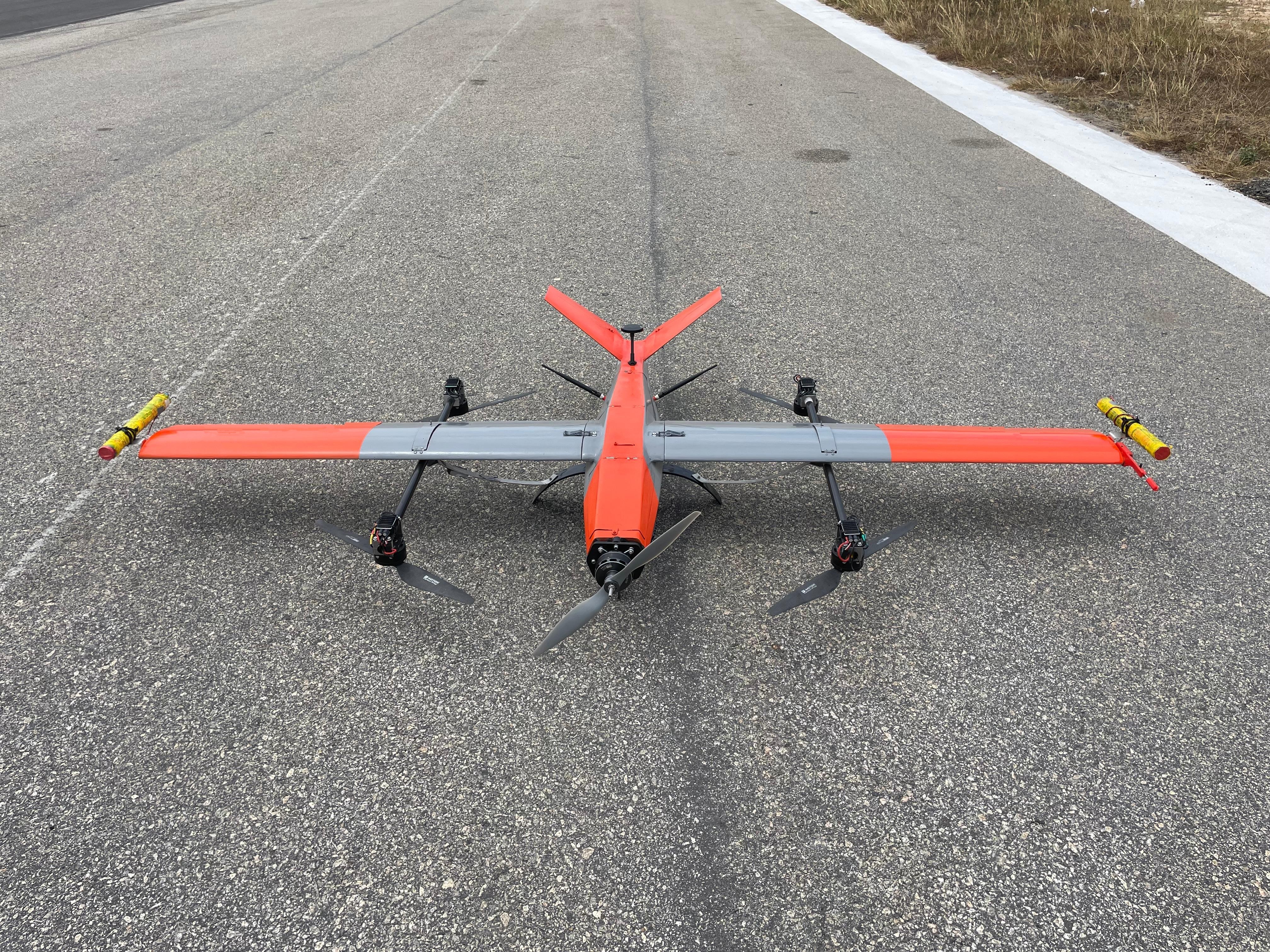

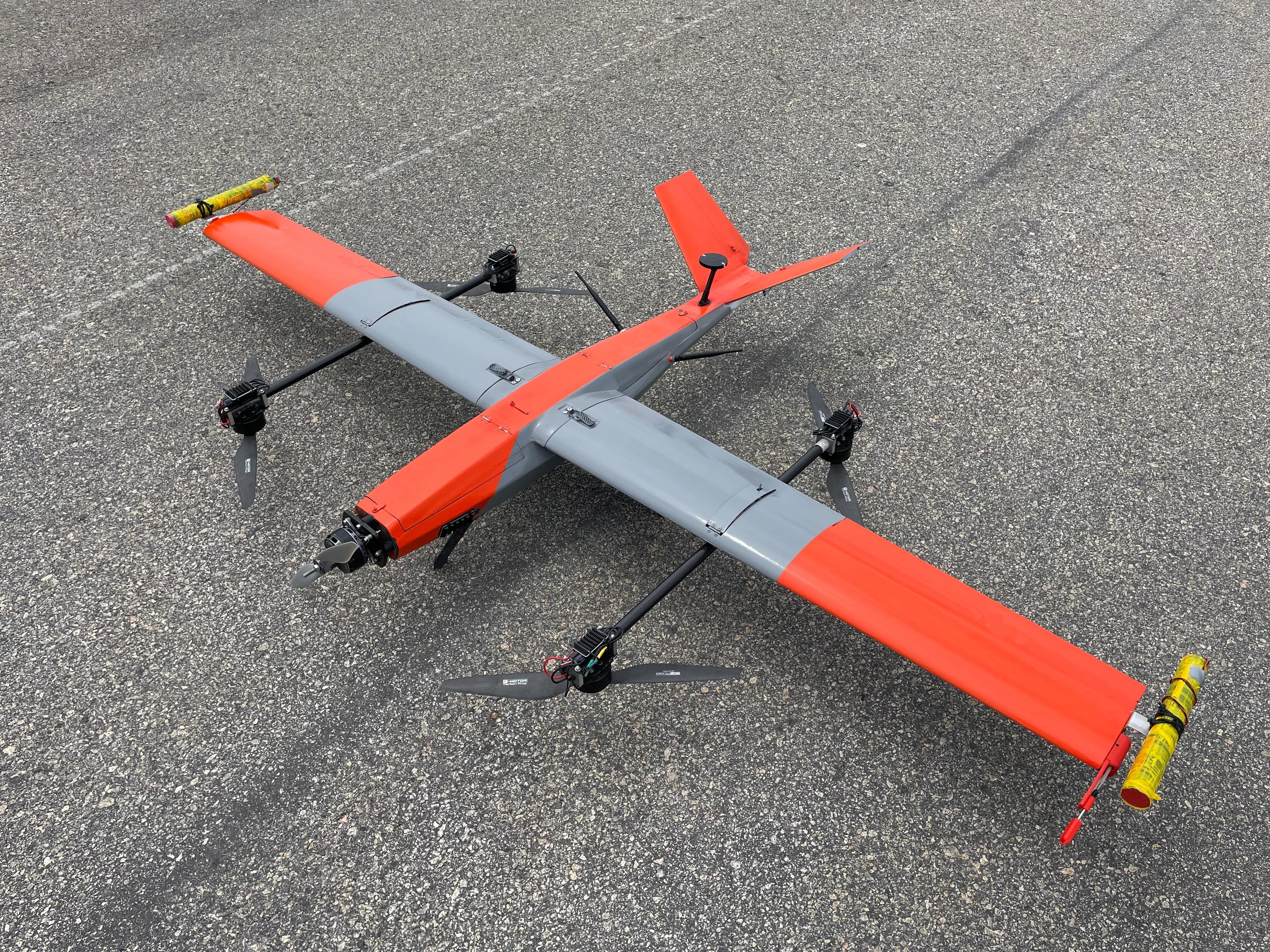

Chakr X1 VTOL
Adopts a high-efficiency V-shaped tail, and at the same time optimizesthe aerodynamic shape and relative position of the wing, tail and fuselage. The aerodynamic load distribution is reasonable, the lift and drag are significantly increased, andthe flight efficiency is high.
The VTOL adopts a streamlined shape as a whole to reduce flight resistance as much as possible while ensuring stable flight.
Product specifications are subject to change without prior notice. Please get in touch with us for the most up-to-date specifications and details.
Product Details
- Material: EPO, carbon fiber, aviation aluminum alloy, engineering plastic, etc.
- Wingspan: 2400mm
- Cruising speed: 20-22m/s
- Payload: 1kg
- Max Take-off weight: 14kg
- Working Temperature: -10℃-50℃ o
- Take-off and landing method: vertical take-off and landing
- Endurance: Around 100min at 14kgs at cruise speed
- Propulsion Type: All electric propulsion
- Payload Type: Support EOIR Camera, LIDAR
Customisation Options
- Configuration Type: Can be configured with Pusher Configuration Motor
- Payload Options: For Tractor Configuration, Payload can be mounted on belly For Pusher Configuration, Payload can be mounted in nose
